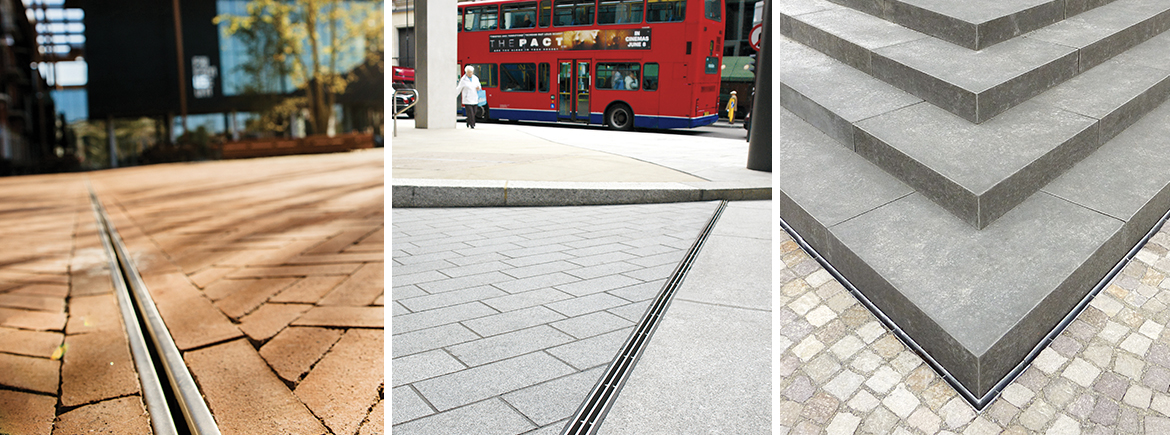

Uniqueness and charisma are key considerations included in the architectural planning of outdoor surfaces. Drainage is a significant and important part of a unified surface design. Professional line drainage and grates can influence the design to a great extent. Line drainage ensures effective removal of surface water even in sloped installations, ensuring a visually clean design.

Brickslot for the Multidrain drainage range was created to enable both “concealed” and “enhanced” drainage. Functionality and aesthetics interconnect in a unique way. The brand new line of ACO Brickslot fully meets the requirements of timeless design. If you are an architect, ACO MultiDrain® Brickslot can enable a discreet, sleek and original design.

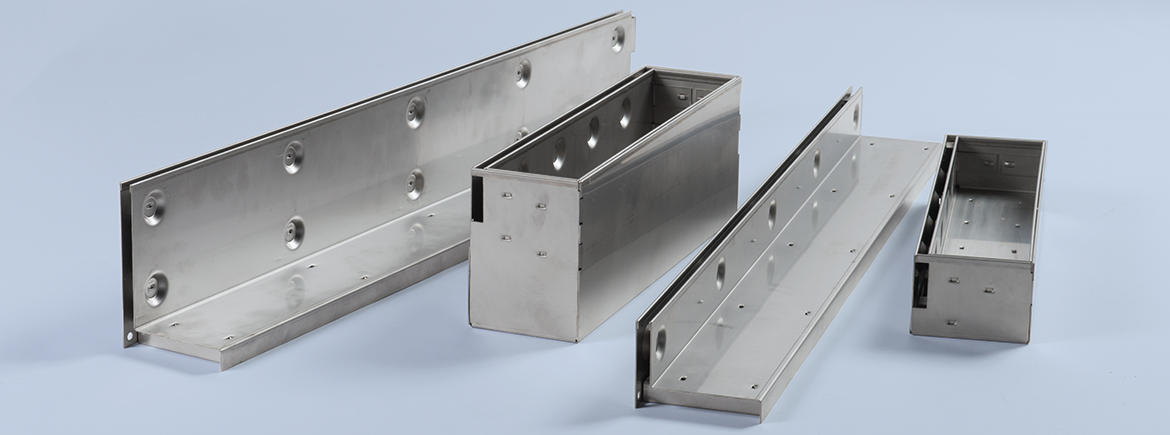

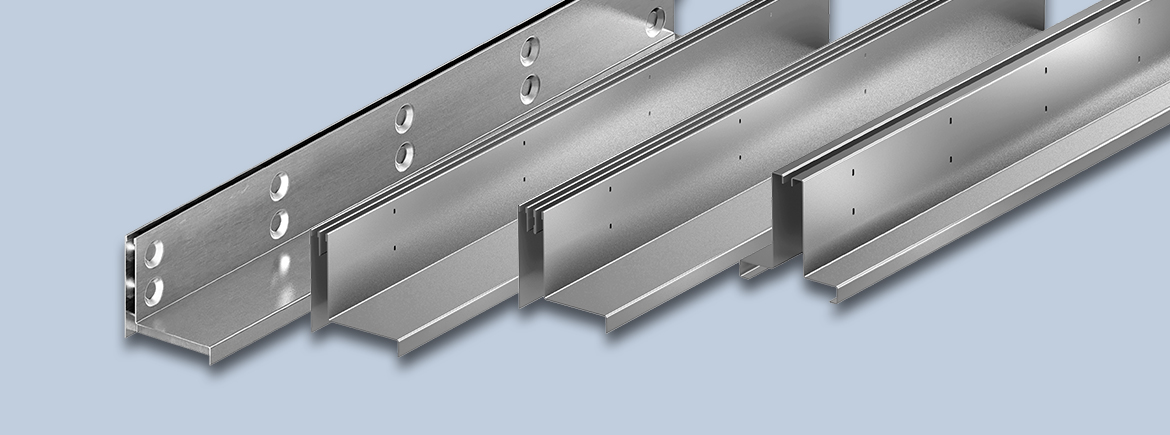

The ACO MultiDrain® Brickslot has multiple design and material options and is compatible with a spectrum of ACO drainage channels. Additionally ACO can offer bespoke design solutions where a specific need is required.

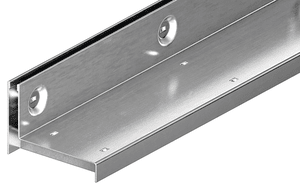

Brickslot Single

A single discrete slot running offset to the side of the cover.

• Material Options: Galvanised Steel, Stainless Steel
• Slot Upstand Options: 65mm, 105mm, 150mm
• Slot Width: 10mm
• Cover Width Options, 123mm, 173mm, 223mm
• Load Class: D400, C250

Brickslot Twin

Two adjacent 10mm slots running offset to the side of the cover.

• Material Options: Galvanised Steel, Stainless Steel
• Slot Upstand Options: 105mm
• Slot Width: 2*8mm
• Cover Width Options, 123mm, 173mm, 223mm
• Load Class: C250

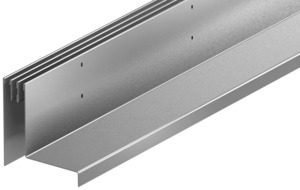

Brickslot Triple

Three adjacent 10mm slots running offset to the side of the cover.

• Material Options: Galvanised Steel, Stainless Steel
• Slot Upstand Options: 105mm
• Slot Width: 3x8mm
• Cover Width Options, 123mm, 173mm, 223mm
• Load Class: C250

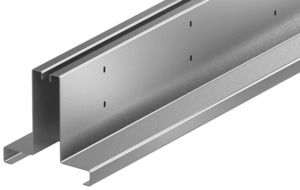

Brickslot Strip

One discrete slot running along the middle of the cover.

• Material Options: Stainless Steel
• Slot Upstand Options: 105mm
• Slot Width: 10mm
• Cover Width Options, 123mm
• Load Class: C250

ACO MultiDrain MD

The ACO MultiDrain® MD is a high quality and high strength polymer concrete system. The channels are lightweight allowing for an easy installation, meanwhile the great variety of sizes and accessories allow the system to be efficiently designed for the requirements of each site.

• Load Class: D400
• Material: Polymer Concrete with galvanised steel edge rail.
• Internal Width: 100mm, 150mm, 200mm
• Applications:

1. Commercial and residential developments,
2. Pedestrian precincts
3. Landscaping and parking areas.

Find out more information here.

ACO Multiline Sealin

Designed for locations where full watertightness is necessary, the ACO Multiline Sealin features a integral sealing joint. Far surpassing the water tightness requirements of EVN1433, the system has been tested to hold water tightly for a 72 hours rather than the standard 30minuites.

• Load Class: D400
• Material: Polymer Concrete with galvanised steel edge rail.
• Channel Width 135mm
• Applications:

1. Commercial and residential developments,
2. Pedestrian precincts
3. Landscaping and parking areas.

Find out more information here

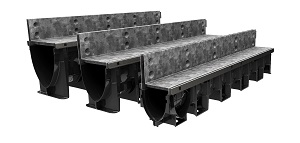

ACO MultiDrain PPD

The ACO MultiDrain® PPD is a high-strength polypropylene channel drainage system. The channel material allows for a very lightweight yet robust system that makes for a simple yet easy intallation.

• Load Class: D400
• Material: Polypropylene with galvanised steel edge rail.
• Internal Width: 100mm, 150mm, 200mm
• Applications:

1. Commercial and residential developments,
2. Pedestrian precincts
3. Landscaping and parking areas.

Find out more information here.

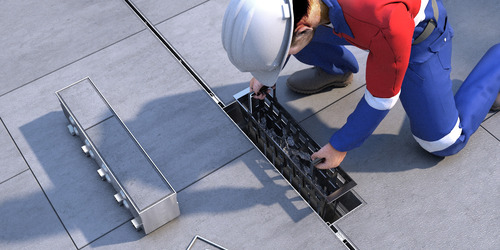

Easy Access

The covers of the access and sumps units are removable using the lifting hooks/key, allowing the ACO MultiDrain® Brickslot to be accessed directly for maintenace. The integrated basket of the sump is easily removed and cleaned of silt.

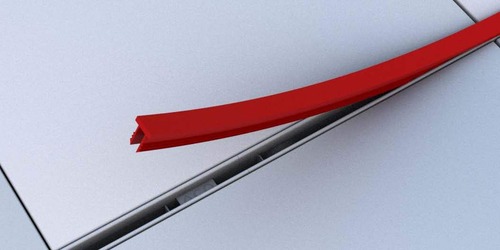

Protective Cover

The tempoary cover protecting the inet slot not ony protects the ACO MultiDrain® Brickslot against damage during installation, but also shields the the inlet slot from site debris.
